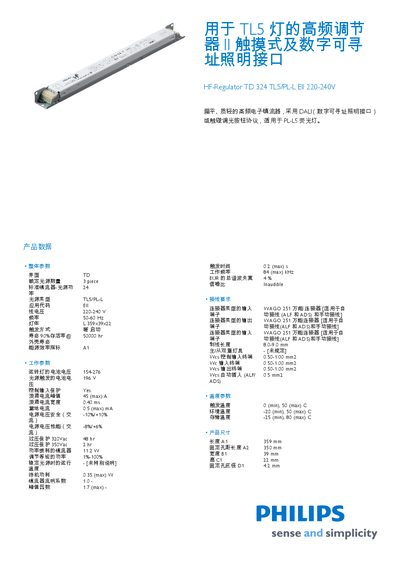

HF-Regulator TD 324 TL5/PL-L EII 220-240V is a flat, lightweight high frequency electronic ballast that uses the DALI (Digital Addressable Lighting Interface) or touch dimming button protocol for PL-L5 fluorescent lamps.
The HF‑RTD 324 TLS/PL-L EII is a high‑frequency electronic ballast designed for TL5/PL‑L fluorescent lamps. It supports both touch‑type dimming and the DALI (Digital Addressable Lighting Interface) protocol, offering flexible control options.
The document lists electrical parameters, protection features, mechanical dimensions, temperature limits, and compliance with international safety and EMC standards. It also includes wiring recommendations using WAGO 251 universal connectors. This manual is written in Chinese.
| Input voltage | 220‑240 V, 50‑60 Hz |
|---|---|
| Number of lamps | 3 piece |
| Lamp size | 359 mm × 39 mm × 22 mm |
| Trigger time (max) | 0.2 s |
| Working frequency (max) | 84 kHz |
| Surge current peak | 45 A (max) |
| Leakage current (max) | 0.5 mA |
| Operating temperature range | -20 °C to 50 °C |
| Trigger temperature range | 0 °C to 50 °C |
| Net weight | 0.370 kg |
The ballast operates on 220‑240 V AC at 50‑60 Hz.
It is rated for three TL5/PL‑L lamps.
It can withstand a peak surge current of 45 A for up to 0.40 ms, with a maximum leakage current of 0.5 mA.
