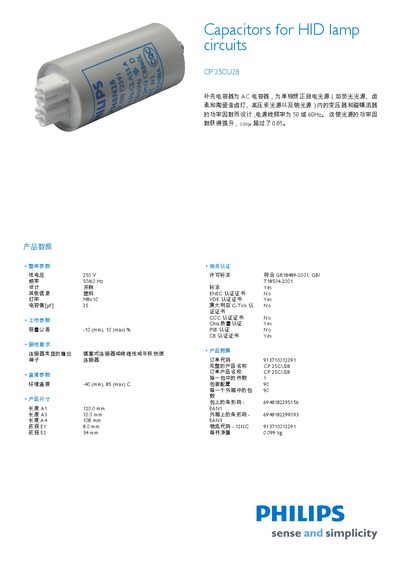

CP 25CU28 supplementary capacitor is an AC capacitor designed for single correction of power factor of transformers and magnetic ballasts inside discharge lighting sources, such as fluorescent lighting sources, halogen and ceramic metal halide lamps, high-pressure mercury lamps, and sodium lamps. It improves the power factor of the light source, so that the cosμ exceeds 0.85.
The CP 25CU28 is a capacitor designed for HID lamp circuits, offering a rated voltage of 250 V and operation at 50/60 Hz. It includes detailed electrical parameters such as capacitance tolerance and temperature limits.
The component complies with standards such as GB18489‑2001 and ENEC, and is supplied in single‑unit packaging with a net weight of 0.099 kg. Barcodes and logistics codes are printed on the packaging for traceability. This manual is written in Chinese.
| Rated Frequency | 50/60 Hz |
|---|---|
| Temperature Range | -40 °C to 85 °C |
| Capacitance Tolerance | ±10 % |
| Length (A1) | 120.0 mm |
| Weight | 0.099 kg |
It can operate from –40 °C to 85 °C.
The capacitance tolerance is ±10 %.
