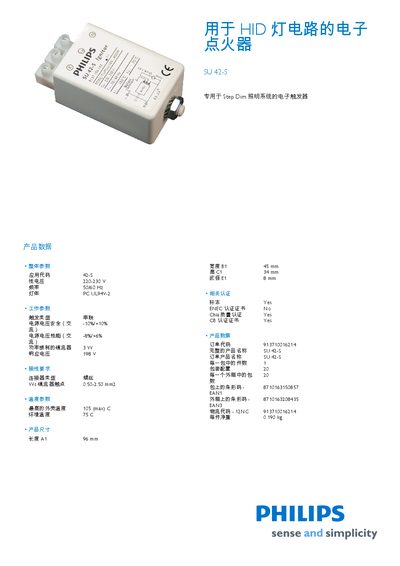

This document provides product data for the electronic igniter SU 42-S, which is designed for HID lamp circuits. The igniter is specifically designed for Step Dim lighting systems and features a series trigger type. It operates at a line voltage of 220-230V with a frequency of 50/60Hz. The igniter has a power loss of 3W and a response voltage of 198V. It requires a screw WC connector type and a ballast contact of 0.50-2.50 mm2. The maximum housing temperature is 105°C and the ambient temperature is 75°C. The dimensions of the igniter are 96mm x 45mm x 34mm x 8mm. It is certified by ENEC and CB, and also has Chia quality certification.
The manual details the overall parameters, operating conditions and connection requirements for the Philips SU 42‑S HID lamp circuit used in electronic ignition systems. It includes voltage, frequency, power consumption, temperature limits and safety guidelines.
Packaging information, bar‑code data and dimensional specifications are also listed, along with the product’s weight and compliance markings such as UL94V‑2. This manual is written in Chinese.
| Operating voltage | 220-230 V |
|---|---|
| Frequency | 50/60 Hz |
| Contact current rating | 0.50-2.50 mm2 |
| Maximum current | 105 (max) |
| Weight | 0.190 kg |
| Flame rating | UL94V-2 |
The operating voltage is 220‑230 V.
The frequency rating is 50/60 Hz.
