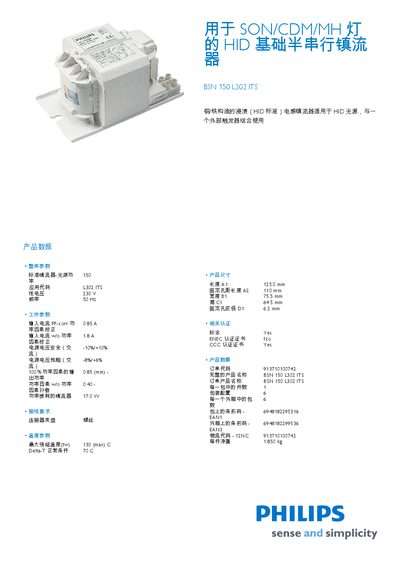

The document introduces the features and characteristics of the HID basic semi-serial ballast BSN 150 L302 ITS, which is suitable for SON/CDM/MH lamps and can be used in conjunction with an external trigger.
The manual lists the overall and operating parameters for the Philips BSN 150 L302 ITS HID lamp, including voltage (230 V), frequency (50 Hz), current (0.85 A) and power consumption (17.0 W). It also covers safety limits such as maximum ambient temperature (130 °C) and wiring requirements.
Physical dimensions are given as A1 125.0 mm, A2 110 mm, B1 75.5 mm, C1 64.5 mm and D1 6.2 mm. Packaging details, bar‑code numbers and weight (1.850 kg) are also provided for logistics and handling. This manual is written in Chinese.
| Maximum Ambient Temperature | 130 °C (max) |
|---|---|
| Dimensions (A1 × A2 × B1 × C1 × D1) | 125.0 × 110 × 75.5 × 64.5 × 6.2 mm |
| Weight per Unit | 1.850 kg |
It operates at 230 V and 50 Hz.
The lamp dimensions are A1 125.0 mm, A2 110 mm, B1 75.5 mm, C1 64.5 mm and D1 6.2 mm.
The maximum ambient temperature is 130 °C.
