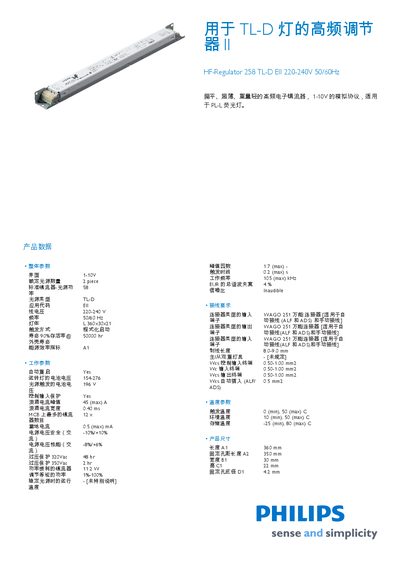

This document describes the features and characteristics of the HF-Regulator II HF-Regulator 258 TL-D EII 220-240V 50/60Hz for TL-D lamps, including its flat, ultra-thin, lightweight design, compatibility with PL-L fluorescent lamps, and support for 1-10V analog protocol.
This manual describes the Philips HF‑R258 high‑frequency regulator designed for TL‑D fluorescent lamps. It outlines the regulator's analog control protocol, trigger characteristics, and protection features.
The document lists electrical parameters, mechanical dimensions, and the various international certifications the product complies with, helping installers and technicians ensure proper integration and safety. This manual is written in Chinese.
| Line voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Control voltage range | 1‑10 V |
| Trigger time (max) | 0.2 s |
| Operating frequency (max) | 105 kHz |
| Peak factor (max) | 17 |
| Length | 360 mm |
| Width | 30 mm |
| Height | 22 mm |
The regulator accepts an analog control signal of 1 to 10 V.
