BSN 400 L301 I is an impregnated (HID standard) inductive ballast with copper/iron construction for HID light sources, to be used in combination with an external trigger.

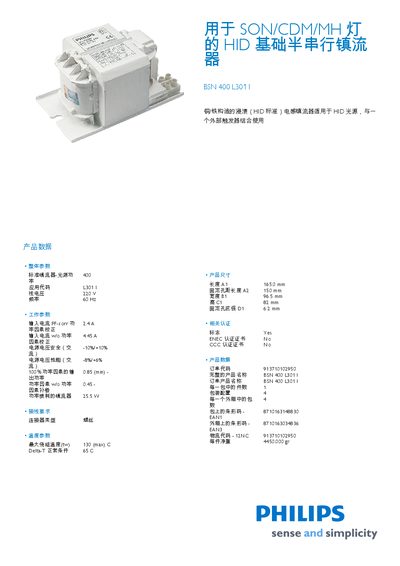

This manual describes the Philips BSN 400 L3011 HID ballast, covering its overall parameters, operating characteristics, and safety information. It includes electrical specifications, temperature limits, and power factor data needed for proper installation and use.
The document also lists mechanical dimensions, packaging configuration, and barcode identifiers, helping distributors and installers verify the correct part and handle logistics efficiently. This manual is written in Chinese.
| Input Voltage | 220 V 60 Hz |
|---|---|
| Maximum Temperature | 130 (max) |
| Power Factor (min) | 0.85 |
| Dimensions (mm) | 165.0 x 150 x 96.5 x 82 x 6.2 |
The ballast operates on 220 V at 60 Hz.
Its dimensions are 165.0 mm × 150 mm × 96.5 mm × 82 mm × 6.2 mm.
