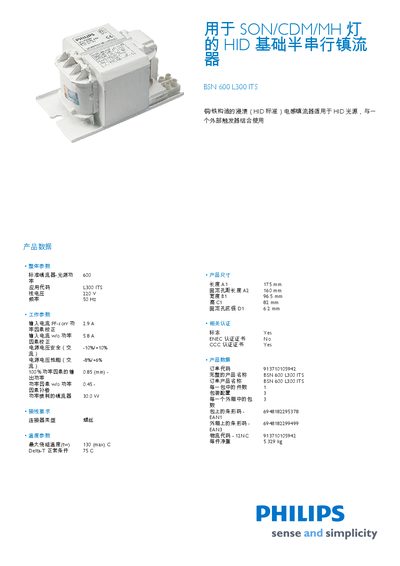

The document describes the features and characteristics of the HID basic semi-serial ballast BSN 600 L300 ITS, which is suitable for SON/CDM/MH lamps.
The document describes the Philips BSN 600 L300 ITS HID ballast, including its electrical characteristics, safety limits and physical dimensions. It is intended for installers and service technicians who need to set up or maintain the ballast.
Key parameters such as input voltage (220 V), frequency (50 Hz), power consumption (30.0 W) and power factor (minimum 0.85) are listed, together with wiring requirements and temperature limits. Packaging details and bar‑code identifiers are also provided. This manual is written in Chinese.
| Power Factor (minimum) | 0.85 |
|---|---|
| Dimension A1 (length) | 175 mm |
| Dimension A2 (width) | 160 mm |
| Dimension B1 (height) | 96.5 mm |
| Dimension C1 (depth) | 82 mm |
| Dimension D1 (hole diameter) | 6.2 mm |
The dimensions are A1 175 mm, A2 160 mm, B1 96.5 mm, C1 82 mm, and D1 6.2 mm.
