The XF2W series of connectors feature a rotation lock mechanism, 0.5mm pitch, and a height of 1.1mm. The series comes in two types: a slim, 3.5mm wide type and a type with a long guide for increased operability. The double-sided (top and bottom) contact structure reduces the number of components required. The back plate on the opposite side of the connector provides greater design flexibility for the PCB. The series is suitable for FPCs with a thickness of t=0.3mm. Gold-plated contacts are available. The series is also halogen-free.
The XF2W series is a 0.5 mm pitch double‑sided contact connector with a 1.1 mm connector height. It offers a ultra‑thin 3.5 mm width and two structural options: an ultra‑fine long type and a high‑operability type with a long sliding seat. The double‑sided contacts reduce component count and the opposite‑side base plate adds design flexibility.

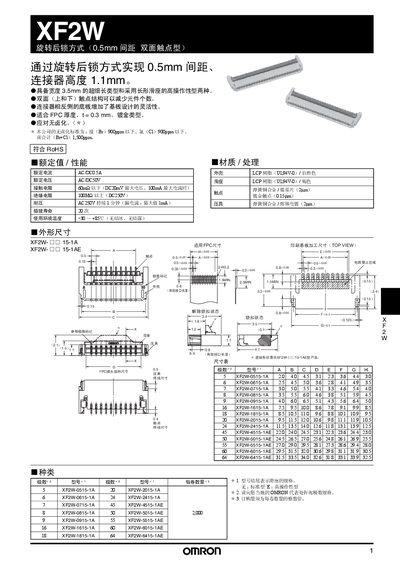

The document lists electrical ratings, mechanical dimensions, environmental limits, and ordering information for each variant (e.g., XF2W‑0515‑1A, XF2W‑0615‑1A). It also includes Omron’s halogen‑free standards and recommended handling conditions. This manual is written in Chinese.
| Rated current | 0.5 A AC/DC |
|---|---|
| Rated voltage | 50 V AC/DC |
| Contact resistance | ≤ 60 mΩ (DC 20 mV, 100 mA) |
| Insulation resistance | ≥ 100 MΩ (DC 250 V) |
| Dielectric strength | 250 V for 1 min |
| Insertion/extraction life | 20 cycles |
| Operating temperature | -30 °C to +85 °C (no icing or condensation) |
| Pitch | 0.5 mm |
| Connector height | 1.1 mm |
| Width | 3.5 mm |
The XF2W connector is rated for 0.5 A AC/DC.
Contact resistance is specified as 60 mΩ or less under DC 20 mV and 100 mA conditions.
It can operate from –30 °C to +85 °C without icing or condensation.
The connector is rated for 20 insertion/extraction cycles.
