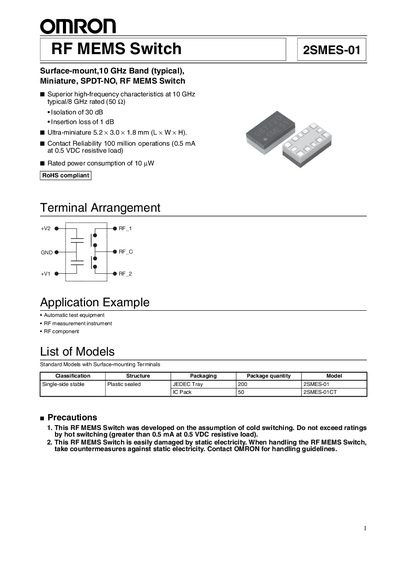

This document describes the features and characteristics of an RF MEMS switch product, including high frequency characteristics at 10 GHz, ultra-miniature size, and 100 million operations contact reliability.
The 2SMES-01 is a surface‑mount, 10 GHz‑band SPDT‑NO RF MEMS Switch with high‑frequency performance, offering 30 dB isolation and 1 dB insertion loss. It is ultra‑miniature (5.2 × 3.0 × 1.8 mm) and rated for 100 million operations at 0.5 mA/0.5 VDC load.
The manual details safety and handling precautions, recommended soldering methods, drive‑circuit examples, and environmental limits. It also lists application examples such as automatic test equipment and RF measurement instruments, and provides engineering data for reference.
| Insertion loss | 1 dB |
|---|---|
| Rated load | 0.5 mA at 0.5 VDC |
| Rated carry current | 100 mA at 10 VDC |
| Operating temperature range | -20 °C to 85 °C |
| Operating time | ≤ 100 µs |
| Release time | ≤ 100 µs |
Keep static below 100 V and follow Omron’s handling guidelines to avoid damage.
The device can carry up to 100 mA at 10 VDC.
