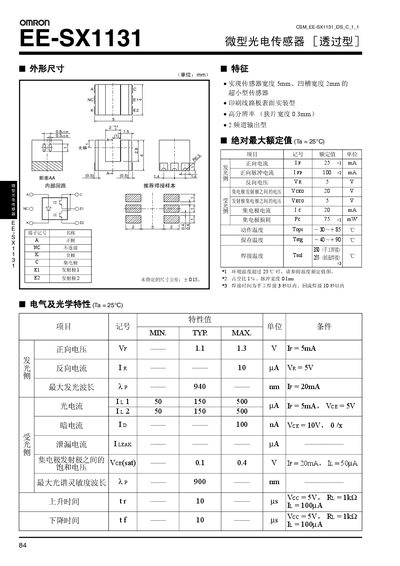

EE-SX1131 is a miniature photoelectric sensor ［through type］ that realizes a sensor width of 5 mm and a groove width of 2 mm. It is a printed circuit board surface mount type with high resolution (narrow width 0.3 mm) and a 2-channel output type.
This manual details the electrical and optical characteristics of the EE‑SX1131 micro photoelectric sensor, including forward voltage, reverse current, and temperature ranges. It also lists the physical dimensions and recommended mounting methods.
Installation notes cover soldering limits, reflow conditions, and storage requirements to ensure reliable performance in industrial applications. This manual is written in Japanese.
| Forward voltage (typical) | 1.1 V at 5 mA |
|---|---|
| Maximum forward voltage | 1.3 V at 5 mA |
| Reverse current (max) | 100 nA |
| Storage temperature range | -20 °C to 90 °C |
Hand soldering should be completed within 3 seconds, and reflow soldering within 10 seconds.
Store the sensor at 10 °C to 30 °C with humidity below 60 % RH.
The typical forward voltage is 1.1 V at a forward current of 5 mA.
The reverse current does not exceed 100 nA.
