The Xc5 DIN interface fine fit connector product series provides 2 poles to 100 poles, with terminal lengths of 13mm and 17mm. Products comply with the RoHS standard, the working voltage is AC 300V, the working current is 2A, the contact resistance is 20mΩ or less, the insulation resistance is 106MΩ or more, the dielectric strength is AC 1,000V/1min, the insertion and removal life is 200 times, and the working temperature is -55～+125℃. The products are mainly used in industrial control, instrumentation, medical equipment, communication equipment and other fields.

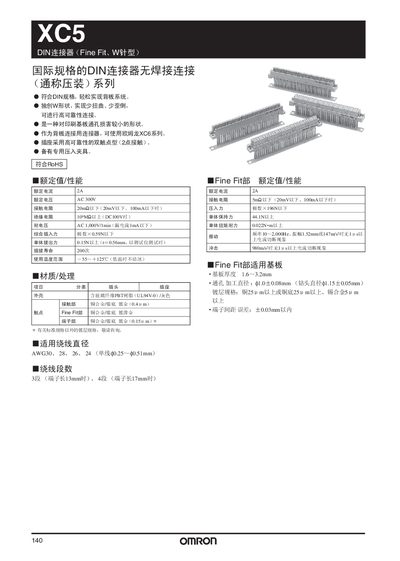

The XC5 series are DIN connectors that meet international DIN standards and feature a Fine Fit design with a W‑shaped pin for low‑twist, high‑reliability connections. They are intended for back‑plane applications and are compatible with Omron XC6 series sockets.
The document lists electrical ratings, mechanical dimensions, compatible wire gauges, and the required manual press tools (e.g., XY2D‑1005). It also covers packaging, installation guidelines, safety precautions, and storage recommendations. This manual is written in Chinese.
| Rated current | 2 A |
|---|---|
| Rated voltage | AC 300 V |
| Contact resistance | ≤5 mΩ (≤20 mV, ≤100 mA) |
| Insulation resistance | ≥10⁵ MΩ at 1000 V DC |
| Pull‑out force (single unit) | ≥44.1 N |
| Insertion force (per contact) | ≤0.59 N |
| Operating temperature range | -55 °C to +125 °C |
| Insertion cycles (life) | 200 cycles |
| Compatible wire gauges | AWG 30‑24 |
The connector is rated for a current of 2 A.
The connector is rated for 200 insertion cycles.
It can be used from –55 °C up to +125 °C.
