XF2M-□□15-1A/H is a rotary locking type connector produced by OMRON. The rated current of this connector is AC/DC0.5A, the rated voltage is AC/DC50V, the contact resistance is 50mΩ or less, the insulation resistance is 100MΩ or more, the withstand voltage AC250V for 1 minute (leakage current: maximum 1mA), the insertion and removal life is 20 times, and the operating ambient temperature is -30 to +85 °C (no freezing or condensation).
The XF2M series is a double‑sided contact connector with a 0.5 mm pitch, designed for reliable rotation‑lock operation and reduced component count. It is suitable for FPC thickness of 0.3 mm and complies with RoHS standards.

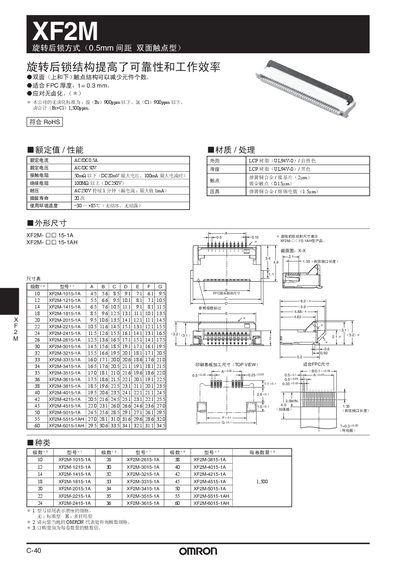

The document lists electrical characteristics such as rated current, voltage, contact resistance, insulation resistance, dielectric strength, insertion life, and operating temperature range, as well as detailed dimensions for each part number. This manual is written in Chinese.
| Rated Current | 0.5 A |
|---|---|
| Rated Voltage | 50 V AC/DC |
| Contact Resistance | ≤50 mΩ (20 mV, 100 mA) |
| Insulation Resistance | ≥100 MΩ (250 V DC) |
| Dielectric Strength | AC250V for 1 min |
| Insertion Life | 20 cycles |
| Operating Temperature | -30 °C to +85 °C |
| Pitch | 0.5 mm |
| FPC Thickness Compatibility | 0.3 mm |
| RoHS Compliance | Yes |
The rated current is 0.5 A.
It can operate from –30 °C to +85 °C.
Yes, it meets RoHS standards.
Contact resistance is ≤50 mΩ under 20 mV and 100 mA.
