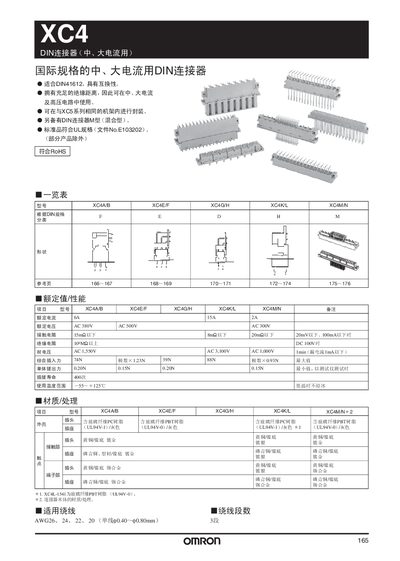

XC4 DIN connector is designed based on DIN41612 standard, providing 2A/15A rated current, supporting 3 wire gauge, and complying with RoHS standard.
This manual describes the Omron XC4 series DIN connectors designed for medium and high current applications. It includes general descriptions, electrical ratings, mechanical dimensions, material specifications, and compatible wire sizes.
The document also provides detailed installation instructions, required tools, safety precautions, and contact‑pin handling guidelines, along with reference tables and diagrams for each connector variant. This manual is written in Chinese.
| Rated Current | 6 A (XC4A/B), 15 A (XC4E/F), 2 A (XC4GVH) |
|---|---|
| Rated Voltage | AC 380 V (XC4A/B), AC 500 V (XC4E/F), AC 300 V (XC4GVH) |
| Withstand Voltage | 1.55 kV AC (XC4A/B), 3.10 kV AC (XC4E/F), 1.00 kV AC (XC4GVH) |
The XC4E/F connector is rated for 15 A.
Use the XY2D-0011 press tool for installing the XC4W contact.
