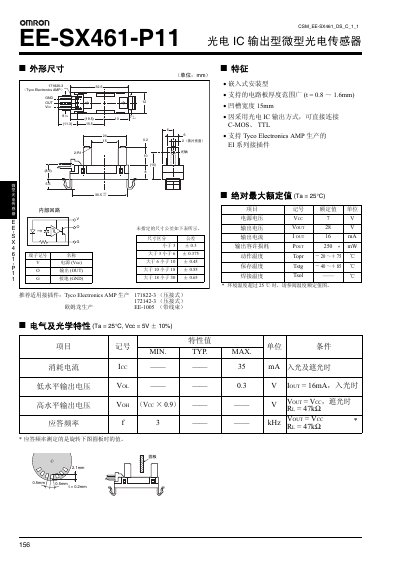

This data sheet introduces the features and characteristics of the optical IC output type miniature photoelectric sensor EE-SX461-P11, including electrical and optical characteristics, external dimensions, absolute maximum ratings, recommended installation dimensions, and installation and removal methods.
The EE‑SX461‑P11 is an embedded‑type micro photoelectric sensor with IC output, suitable for PCB thicknesses from 0.8 mm to 1.6 mm. It can be directly connected to C‑MOS or TTL circuits and offers low power consumption.
The manual provides electrical and optical characteristics, mechanical dimensions, absolute maximum ratings, and detailed installation and removal procedures, including recommended connectors and wiring colors. This manual is written in Chinese.
| Supply voltage (operating) | 5 V ±10 % |
|---|---|
| Supply voltage (absolute max) | 7 V |
| Supply current | 35 mA |
| Output current (IOUT) | 16 mA |
| Low‑level output voltage | 0.3 V |
| Response frequency | kHz range |
| Power dissipation (Pout) | 250 mW |
| Operating temperature | -20 °C to +75 °C |
| Storage temperature | -40 °C to +85 °C |
| Supported PCB thickness | 0.8 mm – 1.6 mm |
The sensor can be mounted on boards with a thickness from 0.8 mm to 1.6 mm.
The response frequency can reach the kilohertz range.
The sensor consumes about 35 mA of current.
