The document introduces a RoHS certified D-sub connector with the brand UL and model XM2S. This connector has a wire range of AWG22-28, a current of 5A AC 300V, and a resistance of 103MΩ DC 500V. It also has a frequency response range of 25dB to 30dB and UL94V-0 flame retardant performance.

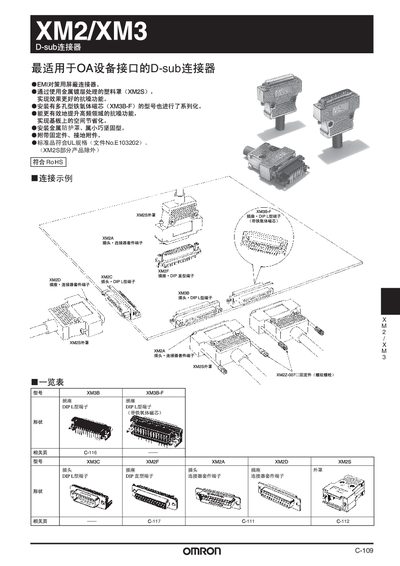

This datasheet describes the Omron XM2 and XM3 series D‑sub connectors, covering electrical ratings, mechanical dimensions, and material specifications. It includes tables of pin configurations, mounting hardware, and part numbers for various connector variants.
Key information such as rated current, voltage, contact resistance, insertion force, and operating temperature ranges are listed, along with detailed drawings of the connector bodies and associated fasteners. This manual is written in Japanese.
| Rated current | 5 A |
|---|---|
| Rated voltage | AC 300 V |
| Contact resistance | ≤15 mΩ |
| Insulation resistance | ≥1 MΩ (DC 500 V) |
| Dielectric strength | AC 1000 V for 1 min |
| Insertion force | ≈3.33 N (max) |
| Mating force | ≥0.29 N |
| Mechanical life | 200 cycles |
| Operating temperature range | -35 °C to +105 °C |
| Storage temperature range | -25 °C to +85 °C |
The connector is rated for a continuous current of 5 A.
It is rated for AC 300 V.
The connector is specified for 200 mating cycles.
The connector can operate from –35 °C up to +105 °C.
