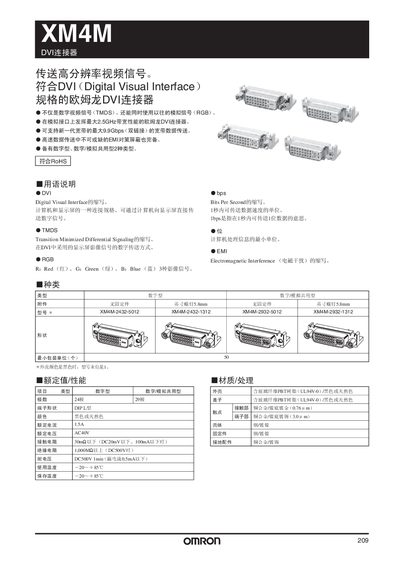

This document describes the features and characteristics of DVI (Digital Visual Interface), including its maximum supported resolution, data transmission speed, EMI suppression, etc. It also introduces the connection specifications and digital transmission method of DVI interface. Detailed parameters of several different models of DVI connectors are provided.
The XM4M series DVI connectors comply with the Digital Visual Interface (DVI) standard and support both digital (TMDS) and analog (RGB) signals. They are capable of transmitting up to 9.9 Gbps of data and include EMI shielding for reliable high‑speed operation.
The manual details electrical ratings such as 15 A current and 40 V AC voltage, contact resistance below 30 mΩ, and operating/storage temperature ranges of –20 °C to +85 °C. It also provides mechanical dimensions, terminal configurations, and step‑by‑step installation guidelines. This manual is written in Chinese.
| Rated Current | 15 A |
|---|---|
| Rated Voltage | AC 40 V |
| Contact Resistance | ≤30 mΩ |
| Maximum Data Rate | 9.9 Gbps (dual‑link) |
| Operating Temperature | -20 °C to +85 °C |
| Storage Temperature | -20 °C to +85 °C |
The connector is rated for a continuous current of 15 A.
It can transmit up to 9.9 Gbps in dual‑link mode.
The connector operates between –20 °C and +85 °C.
Contact resistance is specified as 30 mΩ or less.
