The XN2 series is a new high-voltage circuit breaker series from FINDER. This series of products has the advantages of small size, easy installation, and strong impact resistance.

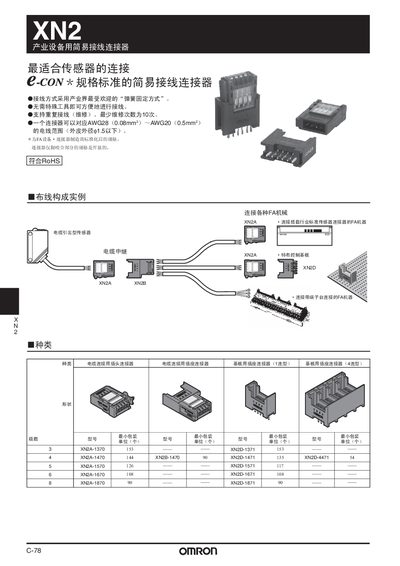

This manual describes the XN2 series simple wiring connectors used in industrial equipment. It lists the connector types, part numbers, and dimensional data, and explains the spring‑lock wiring method that requires no special tools.
The guide includes step‑by‑step wiring and removal procedures, safety precautions such as avoiding pulling the connector, not wiring under power, and using the recommended 2 mm‑or‑smaller flat‑head screwdriver. Material and electrical specifications are also provided. This manual is written in Chinese.
| Rated current (AWG20) | 3 A per pole |
|---|---|
| Rated current (AWG22) | 2 A per pole |
| Rated current (AWG24) | 1 A per pole |
| Rated current (AWG26/28) | 0.5 A per pole |
| Rated voltage | DC 32 V |
| Contact resistance | ≤30 mΩ |
| Insulation resistance | ≥1000 MΩ (DC 500 V) |
| Withstand voltage | AC 1000 V for 60 s |
| Body material | PBT resin (UL94V‑0) |
| Contact plating | Nickel base gold, 0.2 µm |
The connector can be reconnected up to 50 times.
Use a flat‑head screwdriver with a tip size of 2 mm or smaller.
No, the connector is not waterproof.
Do not perform wiring while the equipment is powered on.
