EE-SX1105 is a miniature, low-profile, printed circuit board mounted photoelectric sensor with a sensor width of 4.9mm, a slot width of 2mm, and a narrow strip width of 0.4mm, which has high resolution.
The EE‑SX1105 is a compact through‑type photoelectric sensor with a width of about 49 mm and a low‑profile design (3.3 mm). It is intended for precise detection of objects using infrared light and offers high resolution and fast response.

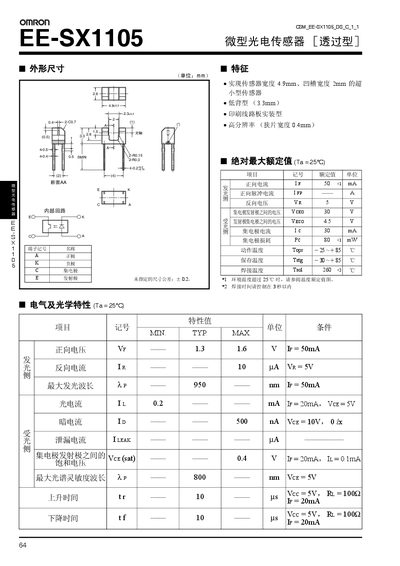

The datasheet lists the sensor's electrical parameters such as forward current (50 mA), reverse voltage (5 V), collector‑emitter voltage (30 V), and optical performance including peak wavelength (950 nm) and sensitivity peak (800 nm). Characteristic curves for current, voltage, response time, and temperature effects are also provided. This manual is written in Chinese.
| Forward current (IF) | 50 mA |
|---|---|
| Reverse voltage (VR) | 5 V |
| Forward voltage (VF) | 1.3‑1.6 V |
| Reverse current (IR) | 10 µA |
| Dark current (ID) | 0.5 nA |
| Rise time (tr) | 10 ms |
| Fall time (tf) | 10 ms |
The sensor is rated for a forward current of 50 mA.
The maximum reverse voltage is 5 V.
The rise time is specified as 10 ms.
