D2F series push button switch is a light touch switch produced by Panasonic. It has two power voltages of AC125V 1A and DC30V 0.1A, which are suitable for various electronic devices.

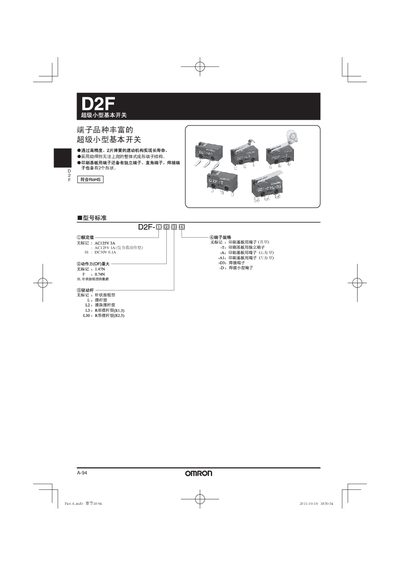

The D2F series are ultra‑compact basic switches designed for high‑precision, long‑life operation. The manual covers the various terminal types, mechanical and electrical performance data, and safety information.
Key sections include performance specifications, contact ratings, terminal shape diagrams, dimensional drawings, installation and soldering procedures, and usage notes for different load conditions. This manual is written in Chinese.
| Rated voltage (AC) | 125 V |
|---|---|
| Rated current (AC, low‑load type) | 1 A |
| Rated voltage (DC) | 30 V |
| Rated current (DC) | 0.1 A |
| Insulation resistance (DC 500 V) | ≥100 MΩ |
| Maximum switching frequency | 30 times/s |
| Mechanical life | ≥1 000 000 cycles |
| Electrical life | ≥30 000 cycles |
