The D2MQ series is a microswitch launched by Panasonic. The series has the characteristics of small size, fast response and long life. It is widely used in various electronic products.
The D2MQ series are ultra‑compact basic switches designed for high‑density, high‑reliability applications. They feature a thin 2.7 mm profile and are available with various terminal styles such as straight, left‑corner, right‑corner, and leaf‑type levers.

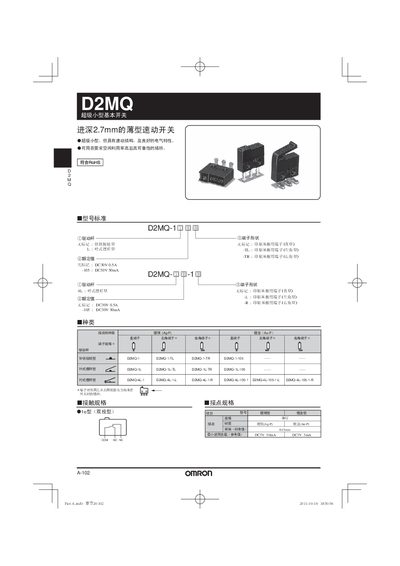

This manual details the electrical ratings, mechanical characteristics, terminal configurations, and proper installation procedures. It also includes safety notes, recommended torque values, and guidance on soldering and wiring to ensure reliable operation. This manual is written in Chinese.
| Rated voltage | DC30 V |
|---|---|
| Rated current | 0.5 A (or 50 mA for low‑current version) |
| Humidity range | 35 % – 85 % RH |
| Contact force | up to 0.39 N |
The D2MQ switch is rated for DC30 V at 0.5 A (a low‑current version is rated at DC30 V 50 mA).
