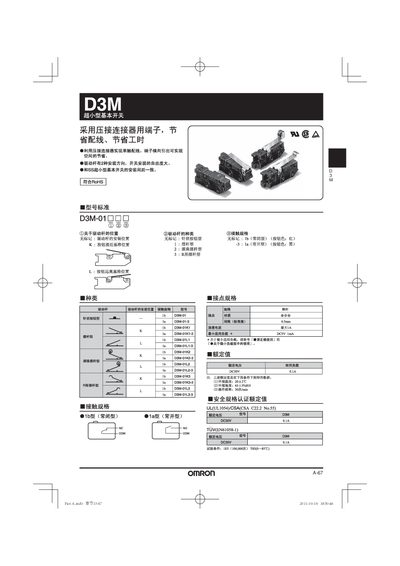

This manual describes the Omron D3M ultra‑small basic switch, a compact device designed to save wiring space and installation time. It covers the various actuator types, mounting options, and the electrical and mechanical characteristics of each model.
Key sections include technical specifications such as rated voltage, current, contact force, and environmental limits, as well as detailed installation guidance, wiring recommendations, and safety certifications. The document also lists connector part numbers and recommended mounting hardware. This manual is written in Chinese.
| Minimum load | 5 mA |
|---|---|
| Contact voltage rating | AC1000 V (50/60 Hz) |
| Operating temperature range | -25 °C to 85 °C |
| Maximum humidity | 60 % RH |
| Mechanical life (electrical cycles) | ≥200 000 cycles |
| Maximum actuation force | 0.50 N |
It can operate from –25 °C up to 85 °C.
Use the Japanese compression connector SXA‑001T‑P0.6 as specified in the manual.
The switch is rated for at least 200 000 electrical cycles.
