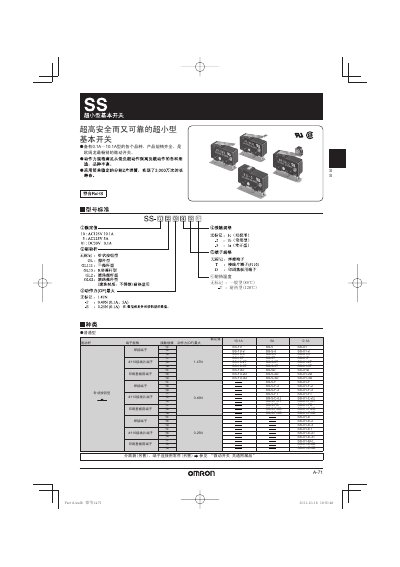

This manual provides detailed information for the Omron SS series miniature basic switches, including the SS‑10, SS‑5 and SS‑01 families. It covers dimensions, terminal types, action characteristics, mounting instructions and safety guidelines.
The document includes tables of mechanical specifications, recommended torque values for mounting, soldering precautions, and wiring recommendations to ensure reliable operation in various applications. This manual is written in Chinese.
| Maximum action force (OF) for SS‑10GL | 0.49 N |
|---|---|
| Minimum reply force (RF) for SS‑10GL | 0.06 N |
| Recommended tightening torque | 0.23–0.26 N·m |
Use a tightening torque of 0.23 to 0.26 N·m when fastening the switch with M2.3 screws.
The maximum action force for the SS‑10GL model is 0.49 N.
The minimum reply force for the SS‑10GL model is 0.06 N.
