This datasheet provides the characteristics of G3VM-352C/F series optical relays, including working voltage, working current, contact withstand voltage, action time, reset time, drive current, leakage current, etc.

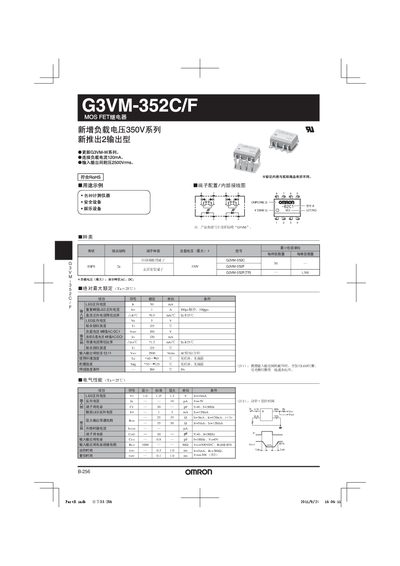

This manual describes the Omron G3VM-352C/F MOS FET relay, including its electrical characteristics, safety information, and recommended usage. It contains wiring diagrams, part numbers, and compliance notes such as RoHS.
The document lists key specifications such as load voltage, continuous load current, isolation voltage, and LED drive requirements, and provides recommended operating conditions and reference data for reliable performance. This manual is written in Chinese.
| Load voltage (peak AC/DC) | 350 V |
|---|---|
| Input‑output isolation voltage | 2500 V rms |
| LED forward current | 50 mA |
| LED forward voltage | 1.0–1.15 V |
The relay is rated for a peak load voltage of 350 V (AC/DC).
The isolation voltage is rated at 2500 V rms.
