The OMRON G3VM-351A/D MOSFET is a 350V N-ch MOSFET with a maximum drain current of 120mA. It can withstand 2500Vrms of transient surge voltage and has a switching time of less than 0.3ms. It is suitable for LED driver applications.

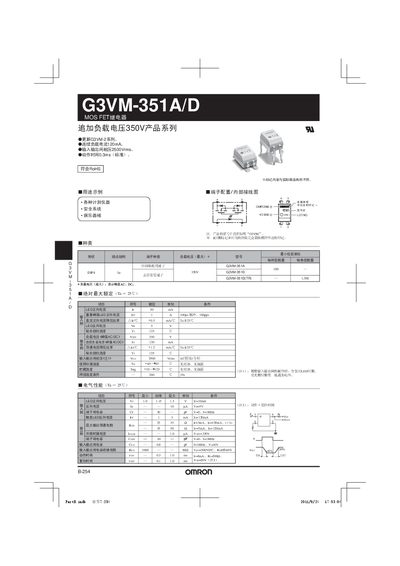

This manual describes the G3VM-351A/D MOS FET relay, including its physical layout, terminal configuration, and internal wiring diagram. It outlines the relay's key electrical characteristics and safety markings.
The document lists detailed specifications such as maximum load voltage, continuous load current, isolation voltage, actuation time, and LED parameters, and provides recommended operating conditions and common precautions for reliable operation. This manual is written in Chinese.
| Continuous load current | 120 mA |
|---|---|
| Input‑output isolation voltage | 2500 Vrms |
| Actuation time | 0.3 ms |
| LED forward current | 50 mA |
| LED forward voltage (10 mA) | 1.0‑1.15 V |
It can handle a continuous load current of 120 mA.
The actuation time is 0.3 ms.
