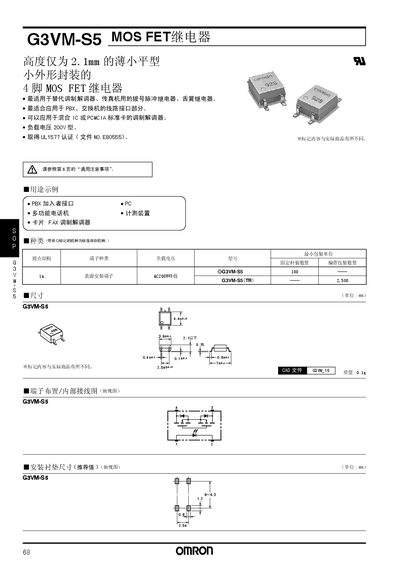

G3VM-S5 is a thin and flat, small-sized, 4-pin MOSFET relay with a height of only 2.1mm. It is suitable for replacing dialing pulse relays and reed relays for modems and fax machines.
The G3VM‑S5 is a surface‑mount MOS‑FET relay with a compact 4‑pin package. It is intended as a replacement for mechanical relays in applications such as PBX, PC, multifunction devices and fax machines. The device is UL‑listed (UL1577) and supplied with a 200 V rating.
The datasheet provides maximum ratings, electrical characteristics (forward current 50 mA, reverse voltage 1500 V rms), mechanical dimensions, operating temperature range (‑40 °C to 85 °C) and packaging details. These specifications help designers select the relay for appropriate circuits and ensure reliable operation under specified conditions. This manual is written in Japanese.
| Rated Voltage | 200 V |
|---|---|
| Forward Current (LBD) | 50 mA |
| Reverse Voltage (Vro) | 1500 V rms |
| Operating Temperature Range | -40 °C to 85 °C |
| Package Type | Surface‑mount, 4‑pin |
The maximum forward current is 50 mA.
The relay is rated for 200 V.
The reverse voltage rating is 1500 V rms.
It can operate from –40 °C to 85 °C.
