G3VM-201H1 MOS FET relay is a 2.1mm pitch 6-pin MOS FET relay with a rated voltage of 200V, a maximum current of 200mA, and a maximum switching voltage of 1500Vrms.

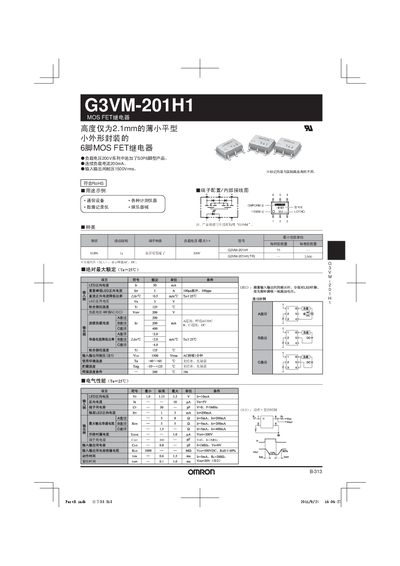

This manual describes the Omron G3VM-201H1 MOS FET relay, a low‑profile 6‑pin surface‑mount device. It includes the relay’s electrical characteristics, recommended load limits, and wiring diagrams for various applications such as communication equipment and data recorders.
The document also lists environmental limits, LED indicator specifications, and safety precautions to ensure reliable operation and proper reset behavior under the specified conditions. This manual is written in Chinese.
| Load voltage (peak AC/DC) | 200 V |
|---|---|
| Continuous load current | 200 mA |
| Maximum operating temperature | 125 °C |
The relay can handle a peak AC/DC load voltage of 200 V.
It is rated for a continuous load current of 200 mA.
