This document introduces a MOS FET product with a resistance of 20mΩ and a current rating of 2.5A, suitable for AC/DC applications and LED driving. The product model is G3VM-21HR.

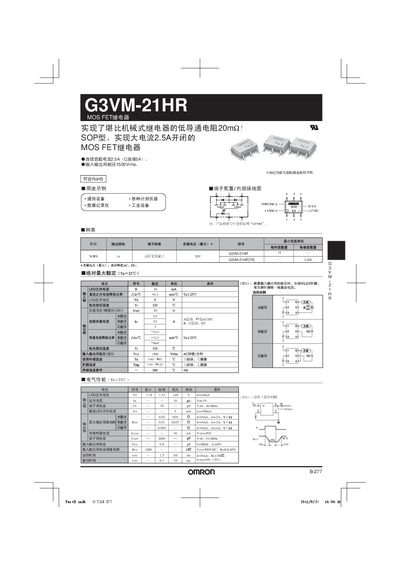

The Omron G3VM-21HR is a surface‑mount MOS FET relay that provides low on‑resistance (≈20 mΩ) and can switch up to 2.5 A continuous load current. The document presents the relay’s electrical ratings, pin configuration and wiring diagrams for various applications such as communication equipment and industrial devices.
The manual also lists recommended operating conditions, including maximum load voltage, LED drive current, and temperature limits, and provides safety notes for proper installation and reliable operation. This manual is written in Chinese.
| Continuous load current | 2.5 A |
|---|---|
| Input‑output isolation voltage | 1500 Vrms |
The relay can carry a continuous load current of up to 2.5 A.
The isolation voltage between input and output is rated at 1500 Vrms.
