B-208 P8G G8P power relay, rated voltage DC5, 9, 12, 24, 48V, working temperature -55°C～+105°C (not frozen), operating humidity 5%～85%.

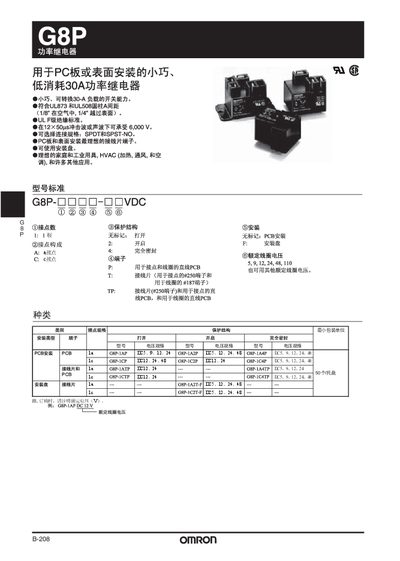

This manual describes the Omron G8P series power relays, which are compact, low‑power devices suitable for PCB or surface‑mount applications. They are designed for a variety of uses such as HVAC, industrial equipment, and other general‑purpose switching tasks.
Key information includes rated load capacities, contact materials, mechanical and electrical performance limits, mounting dimensions, and recommended soldering and handling procedures. Certification details (UL, CSA) and safety precautions are also provided. This manual is written in Chinese.
| Operate Time | ≤15 ms |
|---|---|
| Insulation Resistance | ≥100 MΩ (DC 500 V) |
Preheat below 120 °C for up to 120 seconds, then complete soldering below 265 °C within 6 seconds.
The relay is rated for at least 100,000 mechanical operations.
