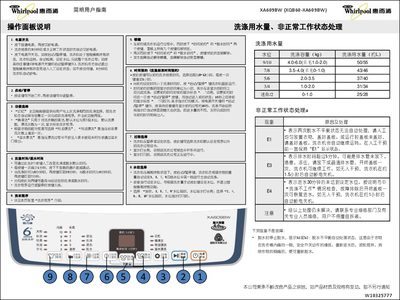

This is the instruction manual of a washing machine, which introduces the operation panel description, washing water consumption, abnormal working status handling, and simple user guide of the product
This manual explains the operation panel functions, washing programs, water‑level selection, time reservation, lock key, and special functions such as extra rinse and tub cleaning. It also provides troubleshooting steps for error codes E1, E3 and E4.
The document includes product specifications like capacity, power consumption, dimensions and rated voltage, as well as step‑by‑step washing instructions from connecting water hoses to starting a cycle. This manual is written in Chinese.
| Rated voltage | 220 V~ |
|---|---|
| Rated frequency | 50 Hz |
| Rated input power | 400 W |
| Wash‑spin capacity | 6.0 kg |
| Weight | 34 kg |
| Overall dimensions (H×W×D) | 546 mm × 537 mm × 920 mm |
| Box dimensions | 530 mm × 530 mm |
| Inlet water pressure | 0.02‑0.78 MPa |
E1 indicates two consecutive spin‑imbalance events that cannot be auto‑corrected; you need to evenly distribute the laundry and close the lid.
Press the “时间预约” (time reservation) and “脱水时间” (spin time) keys together; all nine keys will be locked. Press the same combination again to unlock.
