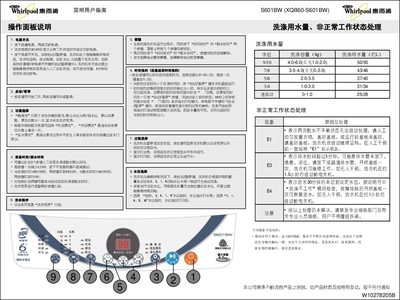

This document is an operation panel instruction for a washing machine, which explains the use of functions such as power switch, washing program, washing time, and water level selection. It also provides solutions for abnormal working states.
The Whirlpool S601BW User Manual provides step‑by‑step instructions for operating the washing machine, including power control, program selection, water‑level adjustment, and time‑reservation features. It also details how to handle error codes such as E1, E3 and E4, and offers troubleshooting tips.
Technical specifications are listed, covering voltage, power consumption, load capacity, dimensions and water‑pressure requirements. Installation steps and safety precautions are included to ensure proper setup and use. This manual is written in Chinese.
| Rated Voltage | 220V~ |
|---|---|
| Rated Frequency | 50Hz |
| Rated Input Power | 400W |
| Wash/Spin Capacity | 6.0 kg |
| Weight | 34 kg |
| Overall Dimensions (H×W×D) | 546 mm × 537 mm × 920 mm |
| Box Dimensions (W×D) | 530 mm × 530 mm |
| Water Inlet Pressure | 0.02‑0.78 MPa |
E1 indicates that two spin cycles were unbalanced and the machine could not auto‑correct; you need to evenly distribute the laundry and close the lid before it continues.
Press the "预约时间" (time reservation) button; each press adds one hour up to a maximum of 12 hours, and the machine will start the wash at the scheduled time.
Use the two dedicated buttons to decrease the time; each press reduces the setting by one minute, and when the time reaches zero it resets to the default (25 min for wash, 7 min for spin).
