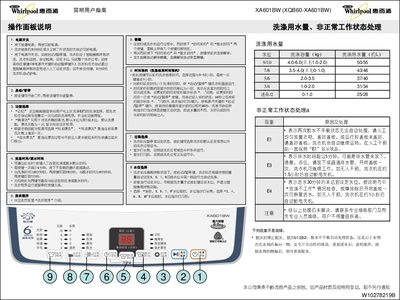

This file is the user manual of a washing machine, which introduces the usage methods and precautions of each function key of the washing machine.
This manual explains the control panel functions, water‑level selection, and the various washing programs available on the Whirlpool XA601BW. It also covers how to adjust wash and spin times, use special functions such as extra rinse or tub cleaning, and set a time‑appointment.
Troubleshooting sections describe error codes (E1, E3, E4), how to lock the keypad, and steps for proper installation, loading, and maintenance of the machine. This manual is written in Chinese.
| Rated Voltage | 220V~ |
|---|---|
| Rated Frequency | 50Hz |
| Rated Input Power | 400W |
| Wash/Spin Capacity | 6.0 kg |
| Weight | 34 kg |
| Overall Dimensions (H×W×D) | 546 × 537 × 920 mm |
| Box Dimensions | 530 × 530 mm |
| Inlet Water Pressure | 0.02‑0.78 MPa |
E1 indicates two unbalanced spin cycles that cannot be auto‑corrected; you need to manually redistribute the laundry and close the lid.
Press the “Time Appointment” and “Spin Time” keys together; this locks all nine keys until the same combination is pressed again.
