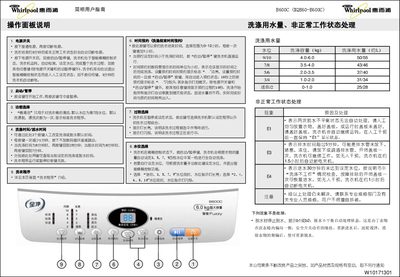

This document is the user manual of the washing machine, which introduces the washing machine's operation panel, washing water consumption, abnormal working status handling, washing program, washing time / dehydration time, start / pause, water level selection, process selection, function selection, time reservation and other functions.
This manual explains the operation panel functions, water‑level selection, program choices and how to start, pause or schedule a wash. It also provides troubleshooting steps for common fault codes such as E1, E3 and E4.
The specification section lists the machine’s capacity, power consumption, dimensions and typical water usage for each load size. Installation steps and safety notes are included at the end of the guide. This manual is written in Chinese.
| Rated Voltage | 220V~ |
|---|---|
| Rated Frequency | 50Hz |
| Rated Input Power | 400W |
| Wash/Dry Capacity | 6.0 kg |
| Weight | 34 kg |
| Overall Dimensions (H×W×D) | 546 mm × 537 mm × 920 mm |
| Water Usage (4.0‑6.0 kg load) | ≈50‑55 L |
Press the water‑level selection key to choose the desired level; the indicator lamp stays solid for mini, 3, 5, 7, 9 levels and flashes for 2, 4, 6, 8, 10 levels.
Yes, use the appointment time key to set a delay from 0 to 12 hours; each press adds one hour.
The default program is the standard program, which performs a double‑strength wash with two rinses and a final spin.
