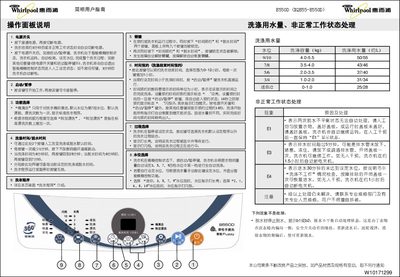

This document is an operation panel instruction for a washing machine, which introduces functions such as washing water volume and abnormal working state handling.
The guide details each button on the control panel, including power, start/pause, water‑level selection, wash program, time settings, process selection, lock key, and additional functions such as extra rinse and tub cleaning. It also describes how to set a wash timer, handle error codes, and perform basic maintenance.
Technical specifications are provided, covering voltage, frequency, power consumption, capacity, dimensions, weight, and water‑pressure requirements. The manual includes step‑by‑step operating instructions and a troubleshooting table for common fault codes. This manual is written in Chinese.
| Rated Voltage | 220V~ |
|---|---|
| Rated Frequency | 50Hz |
| Rated Input Power | 400W |
| Wash / Spin Capacity | 5.5 kg |
| Weight | 34 kg |
| Overall Dimensions | 546 × 537 × 920 mm |
| Cabinet Dimensions | 530 × 530 mm |
| Inlet Water Pressure | 0.02‑0.78 MPa |
E1 indicates an imbalance during spin; redistribute the laundry evenly, close the lid, and the machine will continue operating.
Press the “时间预约” and “脱水时间” buttons simultaneously again to release the lock.
Press the “时间预约” button; each press adds 1 hour up to a maximum of 12 hours.
E3 means the drain time exceeded 5 minutes; check that the drain hose is lowered, not blocked, and close/open the lid once to resume operation.
