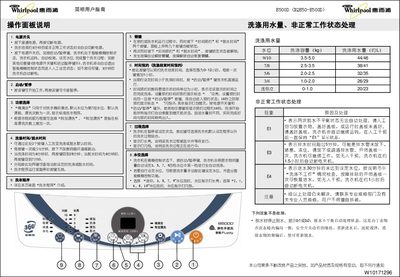

This file is the user manual of Xiaotian E washing machine B500D, which mainly introduces the operation panel description, washing water consumption, abnormal working status processing, washing program and other content.
This manual explains the functions of the control panel, including power switch, start/pause, water‑level selection, program selection, and time/spin adjustments. It also describes how to set a time reservation, lock keys, and use special functions such as extra rinse and tub cleaning.
The guide provides error‑code definitions (E1, E3, E4) with recommended actions, and lists the technical specifications of the B500D model, such as voltage, capacity, dimensions, and water‑pressure requirements. This manual is written in Chinese.
| Rated Voltage | 220V~ |
|---|---|
| Rated Frequency | 50Hz |
| Rated Input Power | 330W |
| Washing Capacity | 5.0 Kg |
| Weight | 32 Kg |
| Dimensions (H×W×D) | 546×537×890 mm |
| Box Dimensions | 530×530 mm |
| Water Pressure Range | 0.02‑0.78 MPa |
E1 indicates two spin‑imbalance events that cannot be auto‑corrected; you need to evenly distribute the laundry and close the lid before the machine will continue.
Press the time‑reservation button; each press adds one hour up to a maximum of 12 hours. The display shows the reserved time and the machine will start the wash when the reservation ends.
E3 means the drain time exceeded five minutes; check that the drain hose is lowered, not blocked or frozen, then open and close the lid once to resume operation.
