This document describes the operation methods of the washing machine, including the functions of the power switch, washing time/spin time, start/pause, water level selection, process selection, time reservation, and lock buttons, as well as the handling methods for washing machines with E1, E3, and E4 abnormal working states.

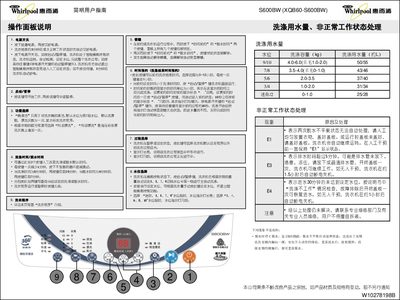

This manual explains the functions of the control panel, including power switch, start/pause, water‑level selection, wash programs, time‑appointment and lock key. It also provides step‑by‑step instructions for loading, adding detergent, and starting a wash cycle.
Additional sections describe common fault codes (E1, E3, E4) and their troubleshooting, as well as the technical specifications such as voltage, power, capacity and dimensions of the S600BW model. This manual is written in Chinese.
| Rated Voltage | 220 V~ |
|---|---|
| Rated Frequency | 50 Hz |
| Rated Input Power | 400 W |
| Wash / Spin Capacity | 6.0 kg |
| Weight | 34 kg |
| Overall Dimensions (H×W×D) | 546 mm × 537 mm × 920 mm |
| Box Dimensions (L×W) | 530 mm × 530 mm |
| Water Inlet Pressure | 0.02‑0.78 MPa |
E1 indicates two unbalanced spin cycles that cannot be auto‑handled; manually balance the laundry and close the lid, then the machine will continue operating.
Press the Time Appointment and Spin Time keys simultaneously to lock all nine keys; press the same two keys again to unlock.
E3 means the drain time exceeded five minutes; check that the drain hose is lowered, not blocked or frozen, then open and close the lid once to resume operation.
Press the Time Appointment key; each press adds one hour up to 12 hours. The machine will start the cycle when the remaining wash time is less than the appointed time.
