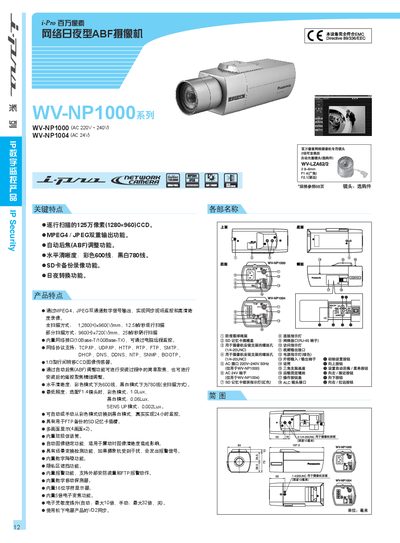

IP digital monitoring products IP Security series 12 IP digital monitoring products IP Security series i-Pro million pixel network day and night ABF camera WV-NP1000 series WV-NP1000 (AC 220V ~ 240V) WV-NP1004 (AC 24V) By using MPEG4 and JPEG dual-channel digital signal output, synchronous on-site monitoring and high-definition recording are realized. Full scanning mode: 1,280 (H) × 960 (V) mm, 12.5 frames/second line-by-line scanning Partial scanning mode: 960 (H) × 720 (V) mm, 25 frames/second interlaced scanning Built-in network interface (10Base-T/100Base-TX), can be remotely monitored via computer. Network protocol support: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, BOOTP. 1/3-inch interline transfer CCD image sensor. The automatic back focus (ABF) adjustment function can be used for simple focusing during installation, as well as fine adjustment of remote focusing after installation. Horizontal resolution: 600 lines in color mode, 780 lines in black and white mode (full scanning mode). Minimum illuminance: When using optional F1.4 lens, color mode: 1.0Lux, black and white mode: 0.06Lux, SENS UP mode: 0.002Lux. It can automatically or manually switch from color mode to black and white mode, realizing 24-hour monitoring. It has an SD memory card slot for FTP backup. Multi-screen display (4 screens × 2). Built-in electret microphone. Automatic image stabilization function, suitable for improving image clarity caused by vibration. It has scene change detection function, and will issue an alarm signal if the camera is disturbed. Built-in digital noise reduction function. Privacy area masking function. Built-in alarm function, supports external security devices and FTP alarm actions. Built-in digital motion detector. Built-in 16-bit character display. Built-in 5x digital zoom function. Electronic sensitivity enhancement (automatic: maximum 10x, manual: maximum 32x, off). Synchronized with Panasonic's VD2.
This manual describes the key and product features of the Panasonic WV‑NP1000 series camcorders, including 1.25 MP CCD imaging, MPEG‑4/JPEG dual output, automatic back‑focus, and day/night switching. It also covers network capabilities such as Ethernet (10/100 Base‑T), remote monitoring, and supported protocols.
Detailed specifications are listed, covering effective pixel resolution, scan rates, minimum illumination, power consumption, dimensions, weight, storage options, and video/audio output formats. Installation notes, lens options, and alarm functions are also included. This manual is written in Chinese.
| Effective Pixels (full scan) | 1280 × 960 |
|---|---|
| Full Scan Frame Rate | 12.5 fps |
| Minimum Illumination | 1.0 Lux (color), 0.06 Lux (B&W), 0.002 Lux (SENS UP) |
| Power Consumption | ≈10.5 W (WV‑NP1000), ≈95 W (WV‑NP1004) |
| Dimensions (W × H × D) | 84 mm × 83 mm × 197.5 mm |
| Weight | ≈0.97 kg |
| Network Interface | 10/100 Base‑T Ethernet, RJ45 port |
| Supported SD Card Capacity | 64 MB – 1 GB |
The camcorder needs 1.0 Lux in color mode, 0.06 Lux in black‑and‑white mode, and as low as 0.002 Lux in SENS UP mode.
Yes, it has a built‑in 10/100 Base‑T Ethernet interface that allows remote monitoring via a computer.
Video can be backed up to an SD memory card with capacities ranging from 64 MB up to 1 GB.
The WV‑NP1000 operates on AC 220‑240 V 50 Hz, while the WV‑NP1004 uses AC 24 V 50 Hz.
