The Panasonic WV-CP480 series is a Super Dynamic III (third generation super dynamic) day/night ABF camera with auto back focus function. The camera uses a 1/3-inch dual-speed CCD color image sensor, a new pixel-by-pixel 160x dynamic range correction technology and 540 lines of horizontal clarity. In addition, the product also has an automatic image stabilizer, scene change detection function and other innovative intelligent functions.

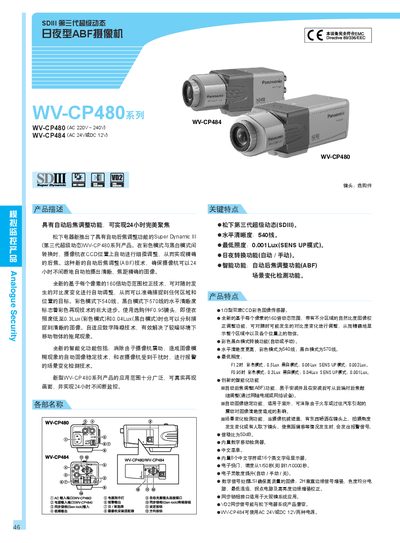

The manual introduces the Panasonic WV-CP480 series, a third‑generation Super Dynamic (SDII) camera with automatic back‑focus (ABF) and scene‑change detection, designed for 24‑hour continuous monitoring. It describes the camera’s ability to switch between color and black‑white modes while maintaining precise focus.
Key specifications include 540‑line color resolution, 570‑line black‑white resolution, a 50 dB signal‑to‑noise ratio, 54 dB dynamic range, low‑light performance down to 0.001 Lux, and power options of AC 220‑240 V, AC 24 V or DC 12 V. Operating temperature ranges from –10 °C to +50 °C, and the unit weighs about 520 g without the lens. This manual is written in Chinese.
| Model | WV-CP480, WV-CP484 |
|---|---|
| Sensor resolution | 752(H) x 582(V) pixels, interline transfer CCD |
| Scan range | 4.8(H) x 3.6(V) mm (≈ 1/3" type) |
| Horizontal resolution (color) | 540 lines (typical) |
| Horizontal resolution (black‑white) | 570 lines |
| Signal‑to‑noise ratio | 50 dB |
| Dynamic range | 54 dB (typical) |
| Minimum illumination (color, F1.2 lens) | 0.5 Lux |
| Operating temperature | -10 °C to +50 °C |
| Weight (without lens) | ≈520 g |
The WV-CP484 can be powered by either AC 24 V or DC 12 V.
The camera has a signal‑to‑noise ratio of 50 dB.
