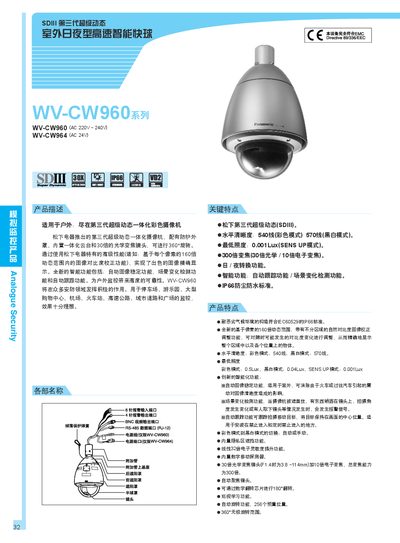

WV-CW960 is a third generation super dynamic integrated color camera with a protective housing, an integrated pan-tilt head and a 30x optical zoom lens that can rotate 360 degrees. Using Panasonic's unique advanced performance (such as: pixel-based 160x dynamic range with non-regional natural contrast image correction adjustment function) to achieve excellent image precision display. The innovative intelligent functions include: automatic image stabilization function, scene change detection function and automatic tracking function. To bring high reliability to outdoor surveillance.
The Panasonic WV-CW960 (and WV-CW964) is a third‑generation super‑dynamic integrated color camera designed for outdoor surveillance. It features a protective housing, built‑in PTZ unit, 30× optical zoom with 10× digital zoom, 360° endless rotation, IP66 weather resistance, and intelligent functions such as auto‑tracking, scene‑change detection, and automatic image stabilization.
The manual details the camera's technical specifications, wiring connections (BNC video, RS‑485 control), power requirements, and operation modes. It also covers preset positions, zoom and focus control, privacy masking, and optional accessories like wall‑mount brackets. This manual is written in Chinese.
| Power supply | AC 220‑240 V, 50 Hz |
|---|---|
| Power consumption | 90 W |
| Effective pixels | 752 × 582 |
| Horizontal resolution (color) | 540 lines (typical HIGH mode) |
| Minimum illumination (color) | 0.5 Lux |
| Minimum illumination (SENS UP) | 0.001 Lux |
| IP rating | IP66 |
| Operating temperature | -40 °C ~ +50 °C |
| Weight | ≈47 kg |
| Rotation range | 360° endless |
| Pan/Tilt angle | -5° ~ 185° |
| Control interface | RS‑485 |
| Preset positions | 256 |
The camera supports up to 256 preset positions.
The minimum illumination in SENS UP mode is 0.001 Lux.
Yes, it meets the IP66 dust‑ and water‑proof standard.
It requires AC 220‑240 V, 50 Hz mains power.
