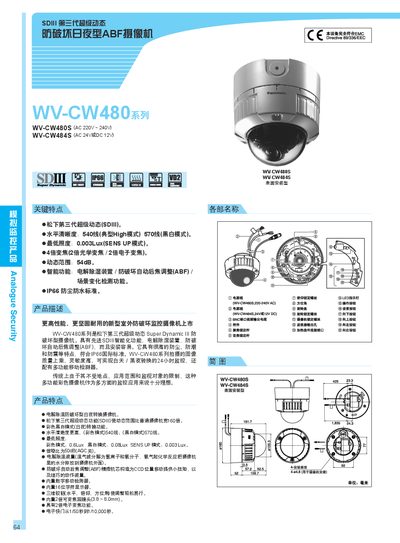

Panasonic WV-CW480 series anti-vandalism day and night conversion camera, supports third generation super dynamic (SDIII) function, has anti-vandalism automatic back focus adjustment (ABF), electrolytic dehumidification device and other intelligent functions, can realize 24 hours all-weather monitoring.
The WV-CW480 series is Panasonic's third‑generation Super Dynamic (SDII) outdoor security camera with IP66 protection, anti‑shock auto back‑focus (ABF) and an electrolysis dehumidification device. It offers high horizontal resolution (540 lines in color, 570 lines in B/W), low minimum illumination (down to 0.003 Lux in SENS UP mode) and multiple power options for flexible installation.
The manual includes detailed specifications such as effective pixel count (752 × 582), lens focal range (3.8‑8.0 mm), 2× optical plus 2× digital zoom, and power consumption (7 W at 220‑240 V, 41 W at 24 V). It also describes configuration of video outputs, monitor connections, and optional features like privacy masking and motion detection. This manual is written in Chinese.
| Model | WV-CW480S / WV-CW484S |
|---|---|
| Effective Pixels | 752(H) x 582(V) |
| Minimum Illumination | 0.6 Lux (color), 0.08 Lux (B/W), 0.003 Lux (SENS UP) |
| IP Rating | IP66 |
| Power Consumption | 7 W (AC 220‑240 V) / 41 W (AC 24 V) |
The camera needs a minimum illumination of 0.6 Lux in color mode.
It meets the IP66 standard for dust and water protection.
Yes, the WV‑CW480 series incorporates an anti‑shock auto back‑focus (ABF) mechanism.
