The Panasonic WV-CF284 series of compact dome cameras features a newly developed high-performance digital signal processor that delivers superior image quality. Its unique auto dark area compensation technology (ABS) captures clear images in the dark just like the human eye. The WV-CF284 series is easy to install. The WV-CF284 series also offers excellent cost-effectiveness, making it ideal for use in a variety of settings, including offices, retail stores, restaurants, and commercial shopping centers.
The WV-CF284 is a compact dome‑type camcorder designed for low‑light environments. It uses an advanced digital signal processor with Automatic Black Stretch (ABS) technology to restore dark areas and deliver clear images, both in day and night modes.

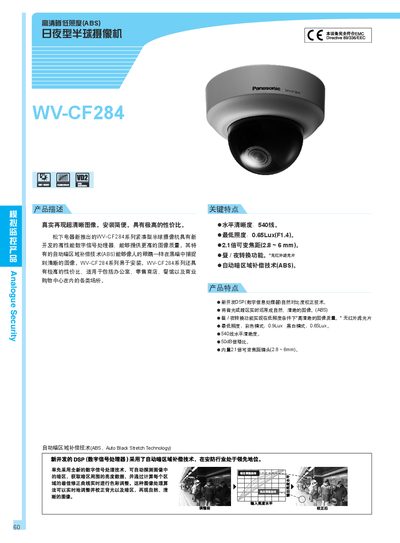

The leaflet lists the camera’s technical specifications, including a 2.1× variable‑focus lens, 540‑line horizontal resolution, and minimum illumination of 0.9 Lux (color) / 0.65 Lux (B/W). It also provides dimensions, power requirements, and operating temperature ranges for easy installation in offices, retail spaces, and other commercial settings. This manual is written in Chinese.
| Model | WV-CF284 |
|---|---|
| Effective Pixels | 752(H) x 582(V) |
| Scan Range | 3.6(H) x 2.7(V) mm |
| Scan Frequency | Horizontal 15.625 Hz, Vertical 50 Hz |
| Horizontal Resolution | 540 lines (center) |
| Focal Length | 28–60 mm (equivalent) |
| Power Supply | DC12 V 220 mA or AC24 V 2.7 W |
| Operating Temperature | -10 °C to +50 °C |
The camcorder provides a horizontal resolution of 540 lines at the center of the image.
