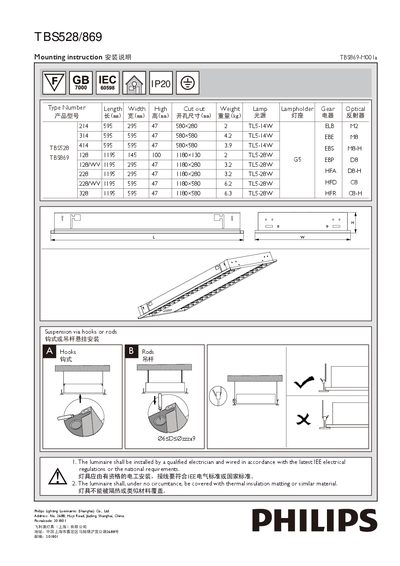

Installation instructions, introducing the installation methods of TBS528/869 IP20 type luminaires, including the installation of luminaires, connecting power cables, installing lamps and gratings.
This manual provides step‑by‑step instructions for installing the Philips TBS528/869 luminaire. It includes safety notes, required qualifications, and compliance with electrical regulations.
The guide covers suspension mounting with hooks or rods, bracket hanging, supply cable routing, lamp and louver installation, and final wiring connections, ensuring a correct and safe setup.
| Length | 295 mm |
|---|---|
| Width | 47 mm |
| Height | 580 mm |
| Lamp power (option 1) | TL5-14W |
| Lamp power (option 2) | TL5-28W |
No, the luminaire shall under no circumstance be covered with thermal insulation matting or similar material.
It must be installed by a qualified electrician in accordance with the latest electrical regulations.
The luminaire can be suspended using hooks or rods, or hung via a bracket.
The manual includes a dedicated section for supply cable installation with wiring guidelines.
