Philips TWG168 Electronic Ballast User Manual, introduces the product features, usage methods, precautions and other information.

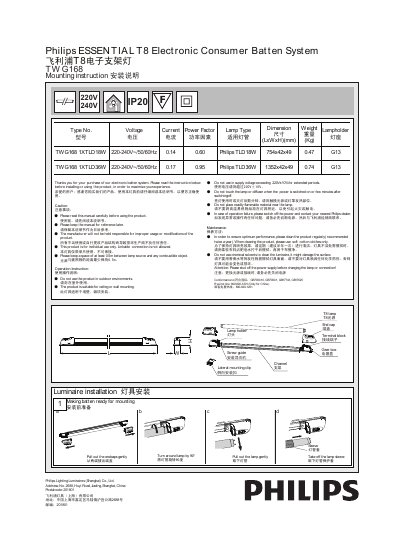

This manual provides step‑by‑step instructions for installing the Philips TWG168 electronic batten system. It includes safety cautions, preparation steps, mounting procedures for ceiling or wall, and wiring details such as recommended wire diameter and terminal block connections.
The document also outlines maintenance recommendations, cleaning guidelines, and troubleshooting advice, emphasizing the need to shut off power before any lamp replacement or wiring work. Compliance with Chinese national standards (GB7000 series) is noted, and a free‑hotline is provided for support. This manual is written in Chinese.
| Voltage | 220‑240V |
|---|---|
| Frequency | 50/60 Hz |
| Power | 18 W / 36 W |
| Current | 0.14 A / 0.17 A |
| Power Factor | 0.60 / 0.95 |
| Dimensions (L×W×H) | 754 mm × 42 mm × 49 mm (18 W) / 1352 mm × 42 mm × 49 mm (36 W) |
| Weight | 0.47 kg / 0.74 kg |
| Lamp Type | T8 |
No, the product is not intended for outdoor environments.
Use a wire diameter of 0.75 mm to 1.5 mm.
Keep at least 0.5 m between the lamp source and any combustible object.
Shut off and disconnect the power supply before replacing the lamp.
