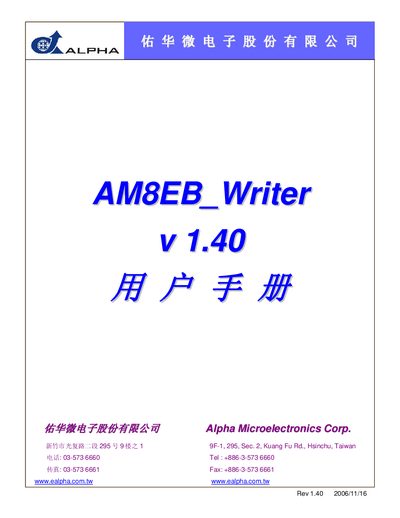

This document is the user manual for AM8EB_Writer v1.40, which describes the usage and features of the product.
This manual introduces the AM8EB_Writer programming tool, covering its hardware appearance, power requirements, USB 1.1 connection, and the various DIP‑switches and jumpers used to select IC types and actions. It explains both PC‑Link mode, where the writer is controlled from a Windows PC, and Stand‑Alone mode, which allows on‑site programming without a host computer.
The software section details driver installation, system requirements, and the graphical user interface, including menus for file operations, configuration, programming, verification, and protection. Additional chapters describe conversion utilities, troubleshooting tips, and help resources. This manual is written in Chinese.
| Power Input | DC‑9V/1A |
|---|---|
| Supported IC Packages | 10, 14, 18, 28 pin |
| Action Switch (DIP‑Switch) | BLANK, PROGRAM, VERIFY, PROTECT |
The LINK LED lights when the writer is successfully linked to the PC, confirming the USB connection.
