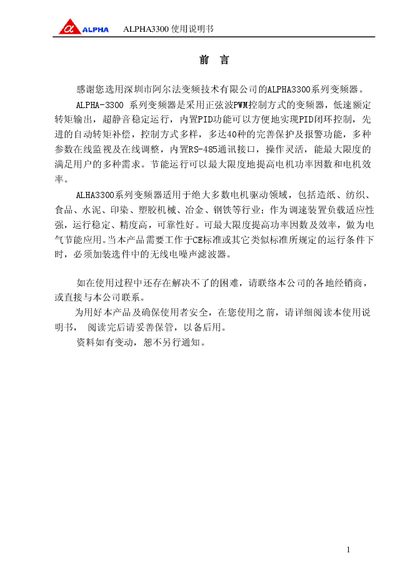

ALPHA3300 user manual is the user manual of ALPHA3300 series variable frequency drive of Shenzhen Alpha Variable Frequency Technology Co., Ltd., which details the installation, debugging, and use of the product.
This manual covers the safe handling, installation, and operation of the Alpha ALPHA3300 variable‑frequency drive. It begins with purchase inspection, safety warnings, and detailed wiring instructions, then explains the keyboard functions, operating modes, and parameter configuration.
Later sections describe fault diagnosis, peripheral device connections, routine maintenance, and quality assurance. Appendices give mechanical dimensions, technical specifications, keyboard display details, and recommended output cable selections. This manual is written in Chinese.
| Ambient temperature range | -10 °C to +40 °C |
|---|---|
| Cooling requirement for enclosure use | Install cooling fan or air‑conditioning |
No, the AC power source must not be connected to the output terminals U, VY, W.
