The AS5 series air treatment unit product manual introduces the features and characteristics of this series of products in detail, including air treatment unit 2 connectors, air treatment unit 3 connectors, pressure regulators, filter-regulators, filters, pre-filters, precision filters, activated carbon filters, standard spray lubricators, oil units, electric oil units with priority switches, oil units, pneumatic oil units with priority switches, two-way three-way solenoid valves, etc.

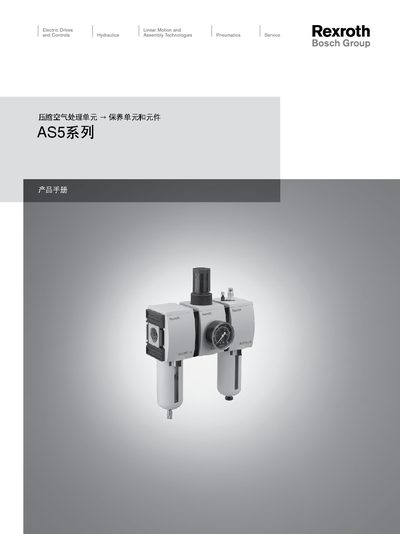

The AS5 series air compression treatment unit from Bosch Rexroth provides reliable air treatment for industrial applications. This manual covers the unit’s series variants, connection sizes, and recommended oil types.
Technical data such as rated flow, operating pressure, temperature range and installation guidelines are presented, along with contact information for regional Bosch Rexroth offices. This manual is written in Japanese.
| Rated flow (Qn) | 12300 Mmin |
|---|---|
| Operating pressure range | 0.5 bar – 8 bar |
| Inlet connection size | G3/4 – G1 |
| Recommended oil type | HLP 68 (DIN 51 524 – ISO VG 68) |
The AS5 unit has a rated flow of 12 300 Mmin.
The unit can operate between 0.5 bar and 8 bar.
Use HLP 68 oil, conforming to DIN 51 524 and ISO VG 68.
The inlet connections are sized G3/4 to G1.
