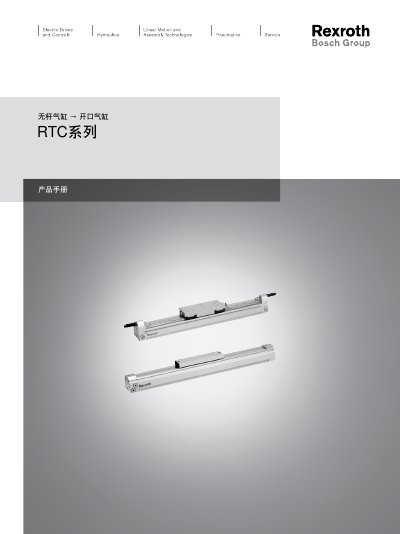

This manual describes the features of the RTC series cylinders, including interfaces, connection mounting components, supplementary products, sensors, connecting cables, T-slot nuts and industrial buffers.
The RTC series rodless cylinders are offered in three variants – RTC‑BV, RTC‑CG and RTC‑HD – covering bore sizes from Ø16 mm up to Ø80 mm and featuring magnetic pistons, integrated guide rods and adjustable pneumatic cushioning. Each variant is available with basic, compact or heavy‑duty versions and can be combined with Easy‑2‑Combine mounting components.
Technical data include a working pressure range of 2 bar to 8 bar, environmental and medium temperature limits of –10 °C to +60 °C, and requirements for dry, oil‑free compressed air. Materials are aluminium with anodised finishes, polyurethane seals and stainless‑steel guide rails. Detailed tables list piston forces, maximum speeds, cushioning energy and weight for each bore size. This manual is written in Chinese.
| Working pressure range | 2 bar – 8 bar |
|---|---|
| Environmental temperature range | -10 °C – +60 °C |
| Medium temperature range | -10 °C – +60 °C |
| Maximum particle size in air | 5 µm |
| Maximum oil content in air | 0 mg/m³ – 1 mg/m³ |
| Piston force (Ø16 mm) | 127 N |
| Maximum piston speed (Ø16 mm) | 5.5 m/s |
| Weight (Ø16 mm, 0 mm stroke) | 0.45 kg |
The cylinders operate between 2 bar and 8 bar.
Only dry, oil‑free compressed air may be used.
The RTC‑BV series is offered with bores from Ø16 mm up to Ø80 mm.
Yes, the product is supplied with lifetime lubrication.
