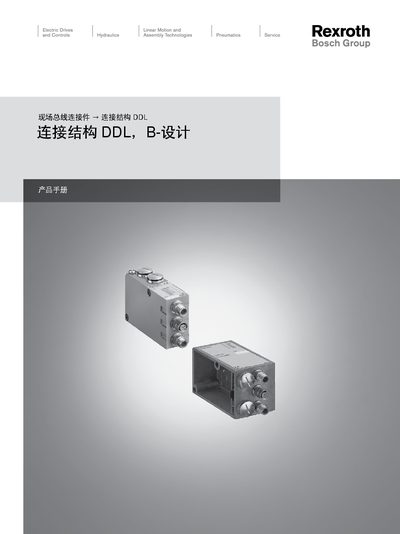

Bosch Rexroth DDL Scene Bus Connector User Guide

This product manual provides detailed information on the connection structure DDL, B-design.

Brand: Rexroth
Category: Other
Document type: User Manual
Language: English
Pages: 33
File format: PDF
File size: 2.9 MB
Published: 16 February, 2012
Updated: 30 September, 2023
MD5 checksum: C822ACE7D54AF975B03986508156EF84
PDF: Bosch Rexroth DDL Scene Bus Connector User Guide PDF

About this manual

The guide describes the connection structures for the DDL scene bus connector, including part numbers, mounting options, and wiring references. It contains technical data such as temperature limits, voltage ratings, and IP protection level.

Additional sections provide safety notes, contact information for Bosch Rexroth, and legal disclaimer statements. The document is intended for engineers and technicians installing or maintaining the connector.

What's inside

Connection Structure
Technical Data
Safety Information
Contact Information
Legal Disclaimer

Specifications

IP rating	IP 65
Temperature range	40°C to 450°C

Frequently asked questions

What is the IP rating of the DDL connector?

The connector has an IP rating of IP 65.

What temperature range can the connector operate in?

It can operate from 40 °C up to 450 °C.
