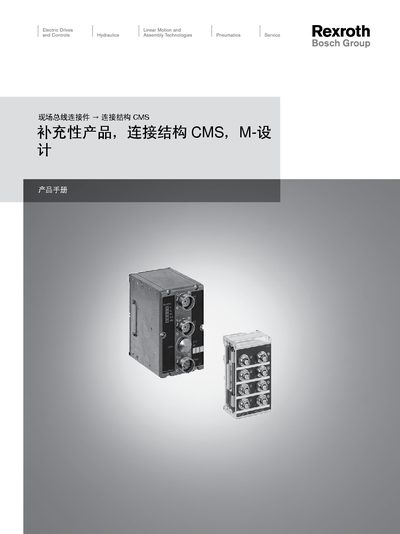

This document introduces the fieldbus connectors and connection structures CMS in the Pneumatics products of Bosch Rexroth AG. The product includes bus modules with drives and fieldbus connections with I/O functions. It supports various fieldbus protocols such as Profibus DP, integrated SPS, INTERBUS-S, and CANopen. In addition, the document provides detailed information on accessories and technical remarks.
The guide describes the CMS (Connection Structure) fieldbus connector family from Bosch Rexroth, covering both M‑design and complementary products. It lists the available bus modules, connector types (M23x1 sockets and plugs), and the supported fieldbus protocols such as Profibus DP, INTERBUS‑S, and CANopen.
Technical information includes environmental temperature ranges, protection ratings (IP65/IP67), electrical ratings (24 VDC), and material specifications. Product codes, weights, and ordering details are provided for each variant, along with contact information for Bosch Rexroth offices worldwide. This manual is written in Chinese.
| Environmental temperature range | +5 °C to +50 °C |
|---|---|
| Protection rating | IP65 |
| Protection rating | IP67 |
| Operating voltage | 24 VDC |
| Number of coil output terminals | 32 |
The CMS connector supports Profibus DP, INTERBUS‑S, and CANopen protocols.
The connector is designed for a working voltage of 24 VDC.
