Quick exhaust valve product manual, introducing the product structure characteristics, working pressure range, environmental temperature, medium temperature, medium, material, interface 1, interface 2, interface 3 (exhaust), Qn 1▶2, Qn 2▶3, weight, product code, etc.

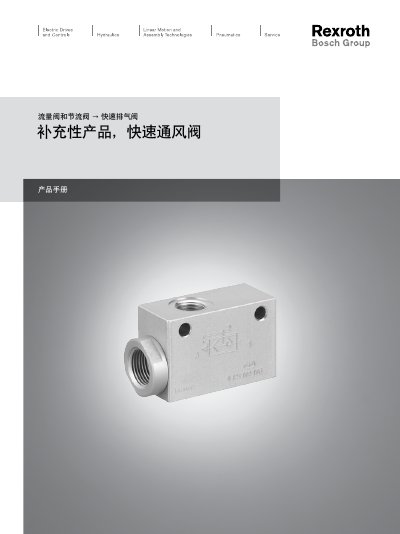

The quick vent valve is a pneumatic component designed for rapid exhaust in air‑supply systems. It is offered in three model numbers (0821002003, 0821002004, 0821002002) and features internal‑thread connections for easy installation.
The document provides key specifications such as a flow capacity of 1000‑3500 l/min, a working pressure range of 0.5‑10 bar, temperature limits from 0 °C to 80 °C, aluminum housing with acrylate seals, and model‑specific weights ranging from 0.11 kg to 0.30 kg. This manual is written in Chinese.
| Flow rate (Qn) | 1000 - 3500 l/min |
|---|---|
| Thread type | Internal thread |
| Working pressure range | 0.5 bar – 10 bar |
| Environmental temperature range | 0 °C – 80 °C |
| Media temperature range | 0 °C – 80 °C |
| Housing material | Aluminum |
| Seal material | Acrylate (丙烯树胶) |
The valve provides a flow rate (Qn) of 1000 to 3500 l/min.
The valve operates between 0.5 bar and 10 bar.
All three connections are internal‑thread (内螺纹).
