Direct fieldbus connection (BDC), B-design, is a bus module with a driver for direct fieldbus connection. It can be used for the protocols Profibus DP, CANopen, CANopen sb, DeviceNet, SERCOS III and EtherCAT.

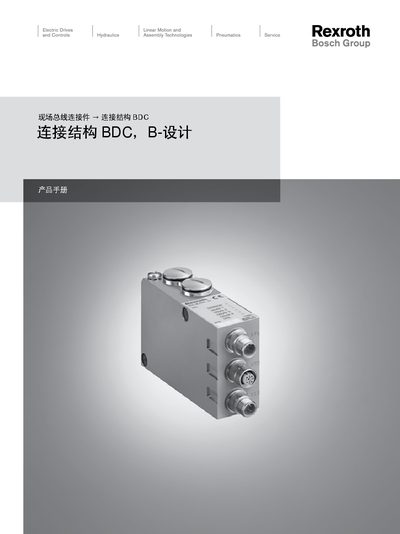

This guide describes the connection structure for the Bosch Rexroft BDC B- series. It lists the supported fieldbus systems – Profibus DP, CANopen, DeviceNet, SERCOS III and EtherCAT – and provides the corresponding connector types and pin assignments.
Technical specifications such as operating temperature range, IP protection class, supply voltage and current limits are given, together with mechanical dimensions and material information. Contact details for Bosch Rexroth sales and service are included at the end of the document.
| Operating temperature range | -25 °C to +90 °C |
|---|---|
| Supply voltage | 24 V DC |
| Maximum current | 0.05 A |
The BDC B- supports Profibus DP, CANopen, CANopen sb, DeviceNet, SERCOS III and EtherCAT.
The device can operate from –25 °C up to +90 °C.
It requires a 24 V DC power supply.
